Authorization Requests

Unit allows you to inject yourself into the decision making process, whenever a card gets used to move funds. Unit will make a call to a dedicated endpoint you create, letting you know about every attempt to use the card, and the details of the attempt. You will respond with an approval or a decline, based on your internal business logic. We refer to this process as "programmatic authorization of card use".

This capability can be used to:

  • Restrict payments to certain types of institutions / services
  • Create elaborate spend controls
  • Run your own fraud logic
  • Move funds between accounts of the customer in real time to prevent a card decline due to insufficient funds.
info

This is a new version of the programmatic authorization flow, that supports multiple concurrent authorization requests (unlike the serial, webhook based version). The webhook version will be available through 2023. We highly recommend migrating to the new version. The documentation for the deprecated version can be found here.

Programmatic authorization of card use

note

The programmatic authorization feature is not enabled by default. To set it up, please reach out to your Unit contact.

You would have to create a dedicated API endpoint (details below) that Unit will call with every authorization request. You can configure that URL in the Unit Dashboard, in the org settings screen.

There are 3 types of card use that you can choose to receive authorization requests on: Purchases, ATM transactions, and Card Transactions (representing mostly peer-to-peer transfers). For each of those, you can choose whether to enable the programmatic authorization flow, as well as the default behavior in cases of timeout.

The Programmatic authorization of card use includes the following steps:

  1. An authorization pending http request is sent by Unit to the url you defined in your org settings.
  2. You can then approve or decline the authorization request by responding to the API call Unit sent to you.
  3. If you do not approve or decline the authorization request within 2 seconds, Unit will approve or decline it according to the default that is defined for you on Unit's settings (which can be changed any time by contacting Unit).
  4. The response from the approve operation will include the final authorization request status. Approving an authorization request may still result in a Declined status for different reasons. For example, at this stage Unit will check the balance on the account, and may decline the authorization due to insufficient funds.
  5. Unit will send an authorizationRequest.approved or authorizationRequest.declined webhook event based on the final approval status.
  6. If an authorization's amount changes the whole process will restart from stage (1).

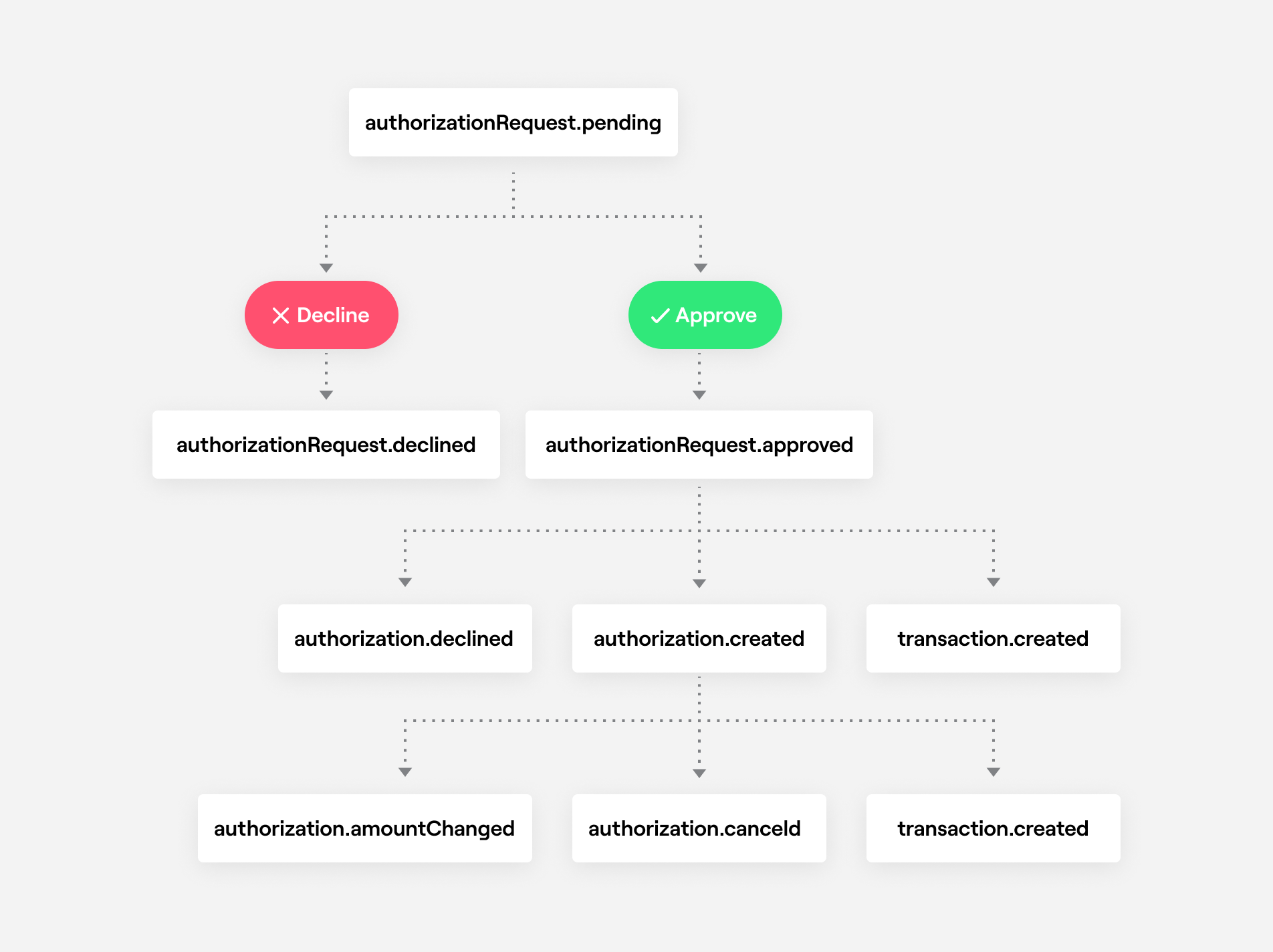

Card Authorizations Flow
note

In order to test the programmatic authorization of card use in Sandbox, you may take advantage of the ability to simulate a Card Purchase Authorization Request, Card Transaction Authorization Request or ATM Authorization Request.

Securing your http servers

Ensure your server is only receiving the expected Unit requests.

Once your server is configured to receive payloads, it'll listen for any payloads sent to the endpoint you configured.

For security reasons, you probably want to verify that the payloads are coming from Unit.

To verify the payloads when defining a url you can set up a secret token which Unit will use to sign the payloads.

Setting up your secret token

You'll need to set up your secret token in two places: Unit dashboard and your server. To set your token in Unit Dashboard:

  1. Navigate to OrgSettings on the top menu under Developer section.
  2. Navigate to GeneralSettings under OrgSettings
  3. Enable API based authorization requests and set your url
  4. Enable Add optional secret and set your secret token

Verifying payloads from Unit

If your secret token is set, Unit will use it to create a hash signature with the entire body of the webhook request.

This hash signature, encoded with base64 is passed along with each request in the headers as X-Unit-Signature.

Unit uses an HMAC SHA1 to compute the hash.

Example of a NodeJS server verifying webhook payload
const express = require('express')
var crypto = require('crypto')
const app = express()
const port = 4000

app.post('/my-webhook', (request, response) => {
response.send('request passed signature validation...')
})

app.use(express.json());
app.use(express.urlencoded({
extended: true
}));

app.use((request, response, next) => {
var signature = request.header("x-unit-signature")
var hmac = crypto.createHmac('sha1', <your secret>)
hmac.update(JSON.stringify(request.body))

if(hmac.digest('base64') == signature) {
const responseBody = {
data: {
type: 'declineAuthorizationRequest',
attributes: {
reason: "InsufficientFunds"
},
},
};

response.status(200).json(responseBody);
}
else {
response.status(500).send("Signatures didn't match!")
}
})


app.listen(port, (err) => {
console.log(`server is listening on ${port}`)
})

Authorization Request

The below covers the structure of the request Unit makes to your API, as well as the two response options - approve or decline.

FieldTypeDescription
dataPurchaseAuthorizationRequest / CardTransactionAuthorizationRequest / AtmAuthorizationRequest / IIASAuthorizationRequestThe authorization request possible resources.
Example Request:
{
"data": [
{
"id": "412",
"type": "pendingAuthorizationRequest",
"attributes": {
"createdAt": "2021-06-24T08:10:08.081Z",
"amount": 2000,
"available": 150000,
"status": "Pending",
"partialApprovalAllowed": false,
"merchant": {
"name": "Merchant name",
"type": "6012",
"id": "311204598883"
},
"recurring": false,
"ecommerce": true,
"cardPresent": false,
"direction": "Debit",
"mustBeApproved": false,
"tags": {
"tag": "value"
},
"currencyConversion": {
"originalCurrency": "EUR",
"amountInOriginalCurrency": 1000,
"fxRate": "1.164"
},
"isInternational": true,
"cardNetwork": "Visa"
},
"relationships": {
"authorizationRequest": {
"data": {
"id": "6",
"type": "purchaseAuthorizationRequest"
}
},
"account": {
"data": {
"id": "10001",
"type": "account"
}
},
"customer": {
"data": {
"id": "10000",
"type": "customer"
}
},
"card": {
"data": {
"id": "7",
"type": "card"
}
}
}
}
]
}

Approving an Authorization Request

Response is a JSON:API document.

200 OK

Attributes

NameTypeDescription
amountintegerOptional. The approved amount (in cents). Can only be specified if the authorization request's partialApprovalAllowed is set to true.
fundingAccountstringOptional. The id of an alternate account (either the customer's or another's) that should be used for funding the transaction. Please contact Unit to enable this feature.
tagsobjectOptional, See Tags. The specified tags will be inherited by the resulting authorization and transaction resources.
Example Response:
{
"data": {
"type": "approveAuthorizationRequest",
"attributes": {
"amount": 5000
}
}
}

Declining an Authorization Request

Response is a JSON:API document.

200 OK

Attributes

NameTypeDescription
reasonstringThe reason for declining the authorization request. One of AccountClosed, CardExceedsAmountLimit, DoNotHonor, InsufficientFunds, InvalidMerchant, ReferToCardIssuer, RestrictedCard, TransactionNotPermittedToCardholder.
Example Response:
{
"data": {
"type": "declineAuthorizationRequest",
"attributes": {
"reason": "InsufficientFunds"
}
}
}

Get by Id

Get an authorization request resource by id.

VerbGET
Urlhttps://api.s.unit.sh/authorization-requests/{id}
Required Scopeauthorization-requests
Timeout (Seconds)5

Response

Response is a JSON:API document.

200 OK

FieldTypeDescription
dataPurchaseAuthorizationRequest / CardTransactionAuthorizationRequest / AtmAuthorizationRequestAuthorization Request resource.
curl -X GET 'https://api.s.unit.sh/authorization-requests/1' \
-H "Authorization: Bearer ${TOKEN}"

List

List authorization requests. Filtering and paging can be applied.

VerbGET
Urlhttps://api.s.unit.sh/authorization-requests
Required Scopeauthorization-requests
Timeout (Seconds)5

Query Parameters

NameTypeDefaultDescription
page[limit]integer100Optional. Maximum number of resources that will be returned. Maximum is 1000 resources.
page[offset]integer0Optional. Number of resources to skip.
filter[accountId]string(empty)Optional. Filters the results by the specified account id.
filter[customerId]string(empty)Optional. Filters the results by the specified customer id.
filter[merchantCategoryCode][]Integer(empty)Optional. Filter result by their 4-digit ISO 18245 merchant category code (MCC).
filter[fromAmount]Integer(empty)Optional. Filters the result that have an amount that is higher or equal to the specified amount (in cents). e.g. 5000
filter[toAmount]Integer(empty)Optional. Filters the result that have an amount that is lower or equal to the specified amount (in cents). e.g. 7000
curl -X GET 'https://api.s.unit.sh/authorization-requests?page[limit]=20&page[offset]=0' \
-H "Authorization: Bearer ${TOKEN}"

Response

Response is a JSON:API document.

200 OK

FieldTypeDescription
dataArray of PurchaseAuthorizationRequest / CardTransactionAuthorizationRequest / AtmAuthorizationRequestArray of authorization request resources.
Example Response:
{
"data": [
{
"type": "purchaseAuthorizationRequest",
"id": "1",
"attributes": {
"createdAt": "2021-06-22T13:39:17.018Z",
"amount": 2500,
"status": "Approved",
"partialApprovalAllowed": false,
"approvedAmount": 2500,
"merchant": {
"name": "Apple Inc.",
"type": 1000,
"category": "",
"location": "Cupertino, CA",
"id": "311204598883"
},
"recurring": false
},
"relationships": {
"customer": {
"data": {
"type": "customer",
"id": "10000"
}
},
"account": {
"data": {
"type": "account",
"id": "10001"
}
},
"card": {
"data": {
"type": "card",
"id": "7"
}
}
}
},
{
"type": "cardTransactionAuthorizationRequest",
"id": "2",
"attributes": {
"createdAt": "2021-06-22T13:41:01.379Z",
"amount": 2500,
"status": "Pending",
"partialApprovalAllowed": false,
"merchant": {
"name": "Apple Inc.",
"type": 1000,
"category": "",
"location": "Cupertino, CA",
"id": "311204598883"
},
"recurring": false
},
"relationships": {
"customer": {
"data": {
"type": "customer",
"id": "10000"
}
},
"account": {
"data": {
"type": "account",
"id": "10001"
}
},
"card": {
"data": {
"type": "card",
"id": "7"
}
}
}
}
]
}
